Chevron Packing
Strength. Durability. Reliability.
Types of Hydraulic Seals
Chevron Packing

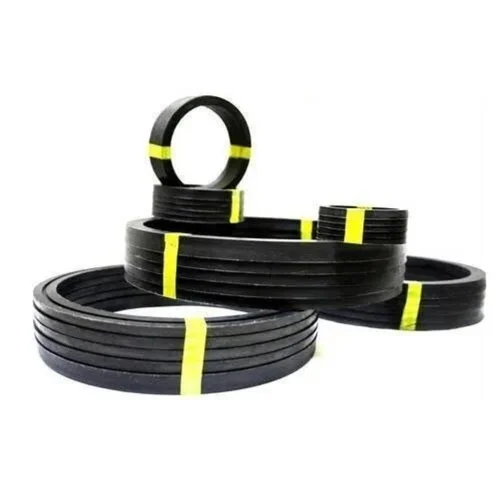

Chevron Packing, also known as V-Packing, is a multi-lip sealing solution designed for high-pressure hydraulic and pneumatic applications. It consists of multiple V-shaped sealing rings, along with top and bottom adapter rings, that work together to provide exceptional sealing performance while accommodating varying pressure conditions.
At Icomax Techno Polymers, we manufacture and supply premium-quality Chevron Packing engineered from high-grade elastomers, PTFE, and fabric-reinforced materials. Our products deliver excellent resistance to pressure, wear, abrasion, chemicals, and extreme temperatures, making them ideal for demanding industrial environments.
Designed for both reciprocating rod and piston applications, our Chevron Packing ensures reliable sealing, minimizes leakage, and extends equipment service life.
Top Adapter Ring
Adapter rings vary drastically by industry. Depending on whether you need a camera filter step-up/down ring, a smartphone magnetic/MagSafe ring, or an industrial ring,
Male Chevron Ring
The Male Chevron Ring is an essential component of a Chevron Packing sealing system. Positioned at one end of the V-packing assembly, it provides structural support and ensures uniform pressure distribution across the sealing rings.
Female Chevron Ring
Bottom Adapter Ring
The Bottom Adapter Ring provides a stable foundation for the Chevron Packing assembly, ensuring proper positioning and even load distribution. It protects the packing set from excessive wear and enhances overall sealing performance

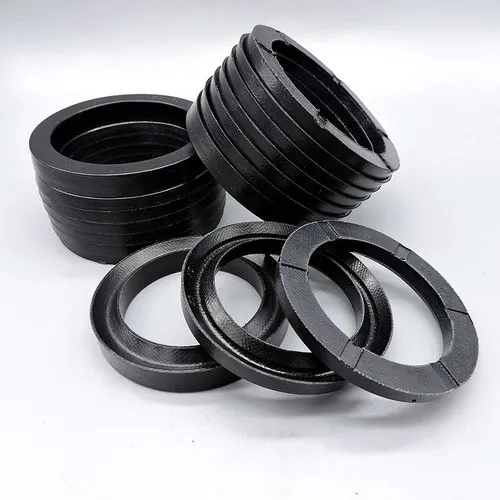

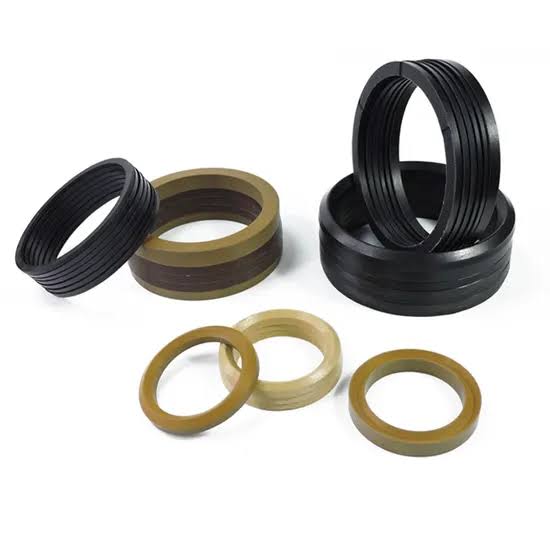

V-Packing Sets
V-Packing Sets consist of multiple V-shaped sealing rings along with top and bottom adapter rings. These sets provide superior sealing performance under high-pressure conditions while accommodating pressure fluctuations and shaft movements.
c

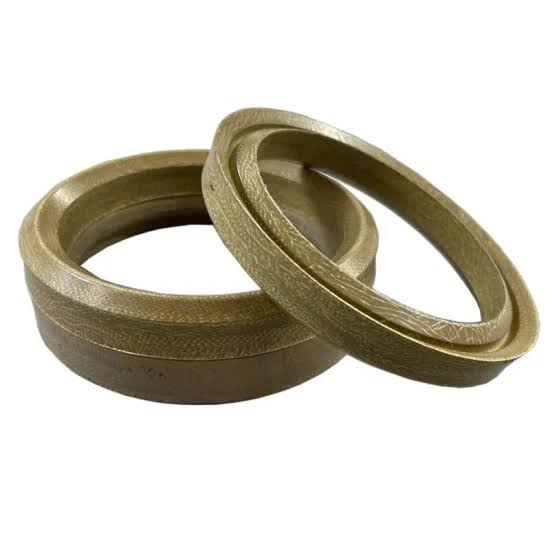

Fabric Reinforced Chevron Packing
Fabric Reinforced Chevron Packing combines premium elastomer materials with reinforced fabric layers to provide exceptional strength, wear resistance, and durability. It is ideal for heavy-duty hydraulic applications operating under extreme pressures.
Backup Rings
Backup rings (anti-extrusion rings) are rigid, washer-like devices installed in the same groove as an O-ring to prevent it from extruding under high pressure. These support rings are typically made from PTFE.
PTFE Chevron Packing
PTFE Chevron Packing is manufactured from high-quality Polytetrafluoroethylene (PTFE), offering exceptional resistance to chemicals, high temperatures, and corrosion. It delivers low-friction performance and long-lasting sealing reliability in aggressive industrial environments.
